Smart Traffic Enforcement System

RexWatch Speed


Smart Traffic Enforcement system monitoring, detecting, managing 24/7 for over-speed, point to point, traffic signal violations on the road. Provide images of vehicles committing a violation such as auto-recognized vehicle’s number.


Features & Advantages


· High-resolution cameras enable clear images of the driver and vehicle number

· Classified enforcement between cargo and general cars is available on the highway

· In addition to over-speeding enforcement, bus lane and the shoulder violation  enforcement is available

· Data communication is a common dedicated line approach

· After initial phase of machine learning, over 99.5% accuracy

· Provide various search conditions like date, time, location and vehicle model

· Use IR LED lights with more than 10 million lifetimes

Diagram

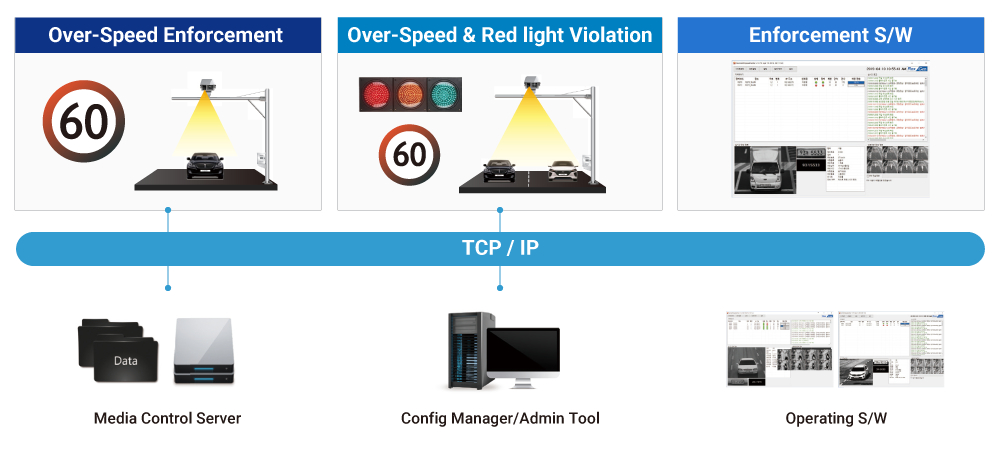

Configuration diagram


· Detection Method : Radar Type

· Detecting Range : 60 meter (for number plate recognition)

· Accuracy : Over 95% (day and night)

· Measured speed : 0km~250km/h

· Detection lanes : Up to 3 lanes

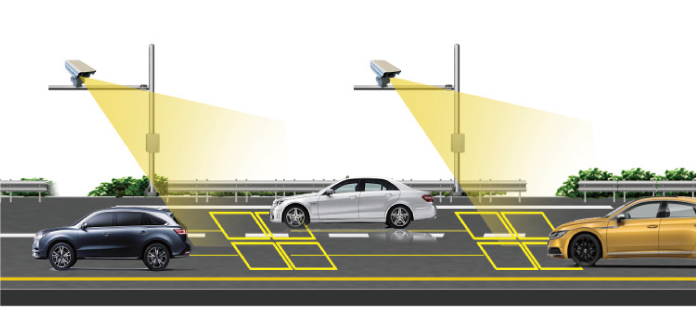

Over-Speed Enforcement System


· Detection method : Vehicle Detection by Radar

· Cognitive method : Automatic Number Plate Recognition

· Recognition rate : over 95%

· Measured speed : 10km~250km/h

· Error rate of measurement speed : below ±5%

· Time server accuracy : ±100m/day

· Detection Rate of section speed violation vehicles : over 99%

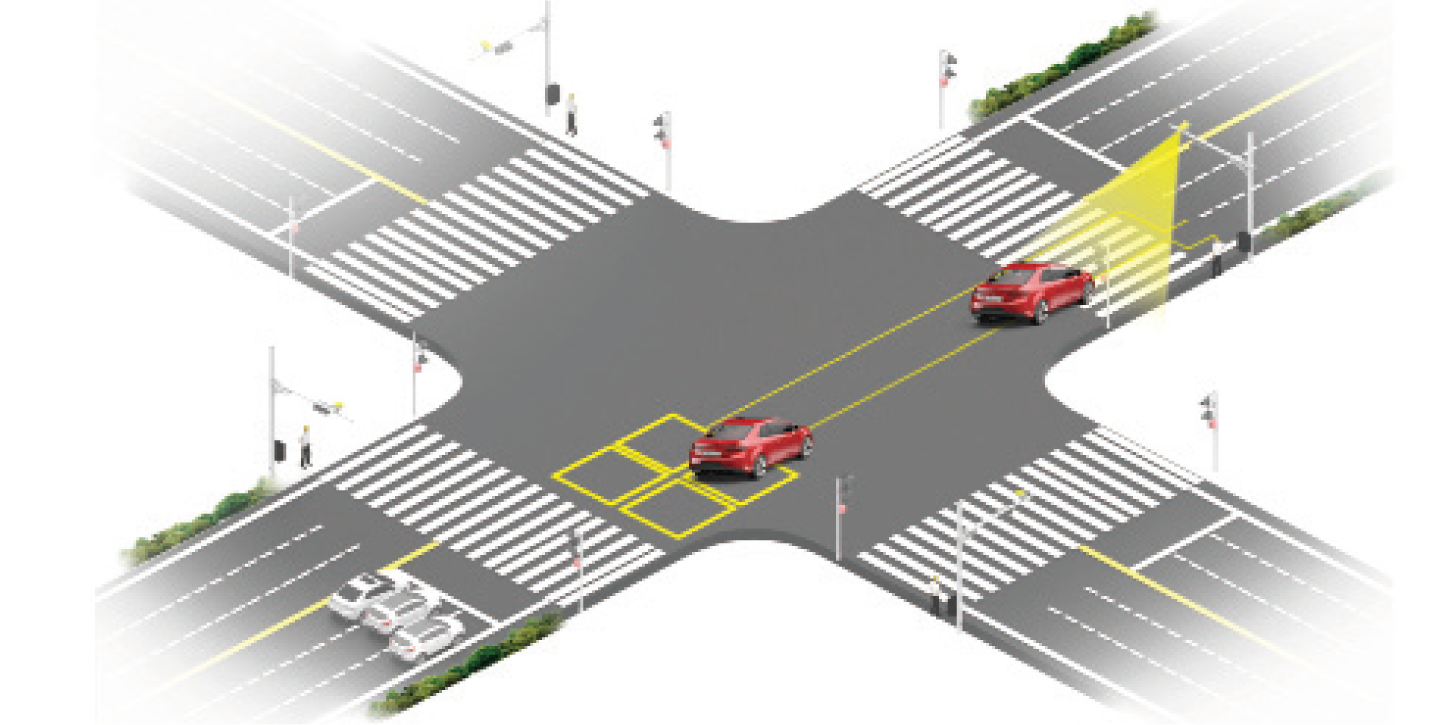

Over-speed & Red light Enforcement System


· Detection method : Vehicle Detection by  Radar

· Cognitive method : Automatic Number Plate Recognition / Tracking vehicles in violation by image processing

· Recognition rate : over 95%

· Measured speed : 10km~250km/h

· Error rate of measurement speed : below ±5%

· Image match rate : 100%

· Detect lane: 2 lane (maximum 3 lanes)

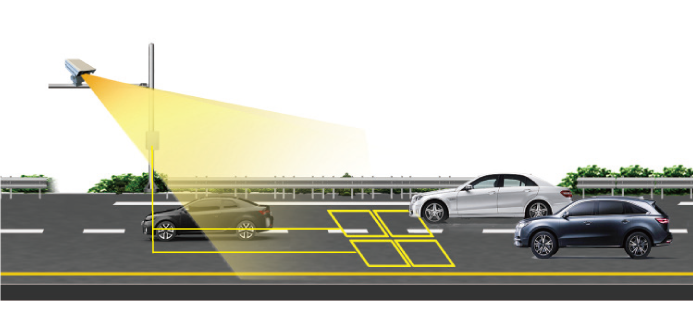

Enforcement for Single lane and Multi-lane


Automatic Number plate recognition during over-speed and red light violation

Features & Advantages

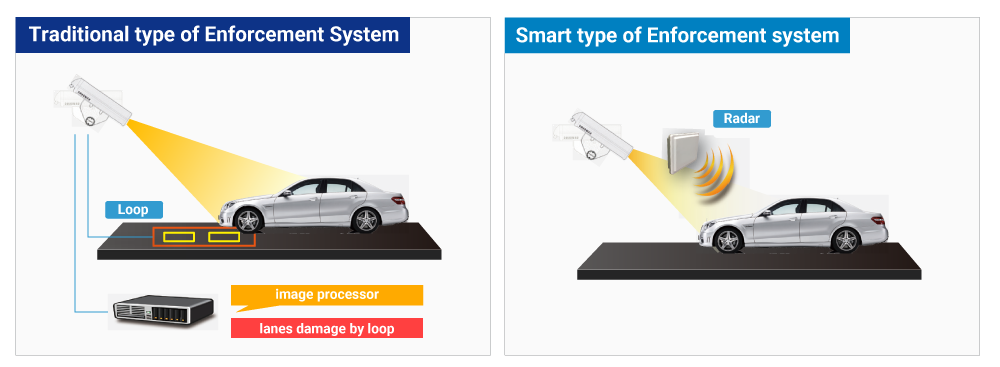

Compatible with radar detection

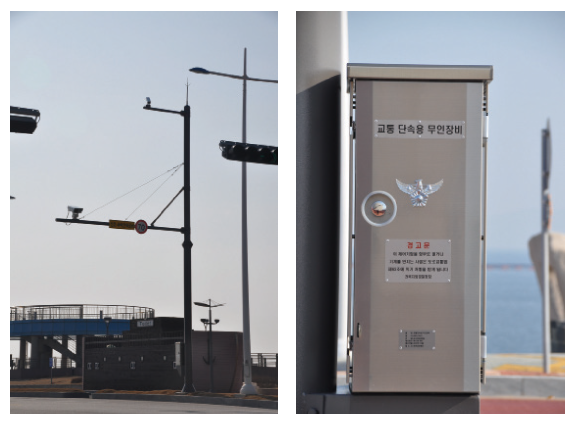

Examples of deployment


South Korea
South Korea
Vietnam
Vietnam
